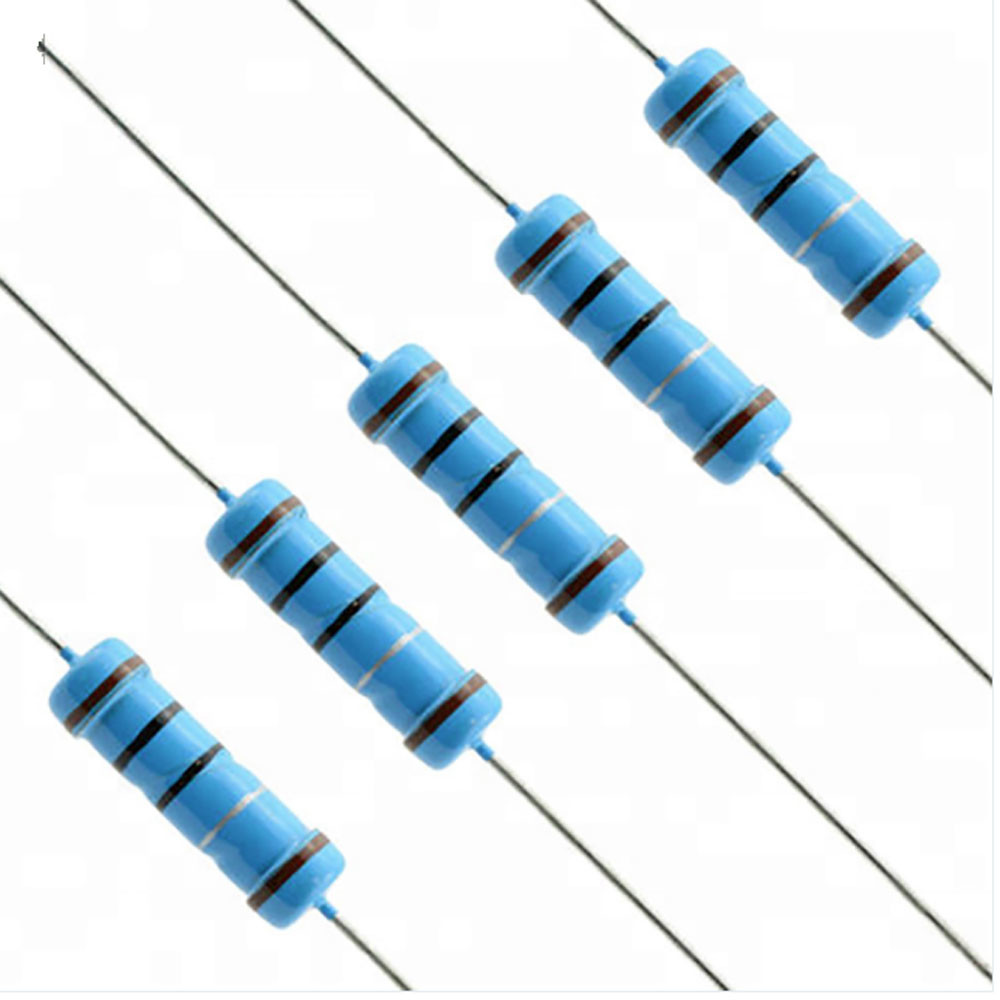

MF 3W 0.1Ω-10MΩ 1% Fixed Resistor Metal Film Resistor For Household Appliances
Features:
- Small volume, low noise
- Good stability and high frequency performance
- High heat conduction porcelain core
- High stability metal skin film
- High reliability end cap with good pressing
- Epoxy paint with high insulation and solvent resistance
Application:
Because it is a lead type resistance, simple and light structure, convenient manual installation and maintenance, often used in a variety of household appliances, communications, instrumentation and radio resistance equipment.
Part Number:
| TMRM | - | 1 2 3 4 | 5 | 6 7 | 8 | 9 10 |
| Produce Code TMRM: Precision Metal Film Resistor | | Resistance Value Code: Three digits: The first two digits are significant figures and the third one denotes number of zeros. 394=390KΩ Four digits: The first three digits are Significant figures and the fourth one denotes number of zeros.1201=1.2K Ω | Tolerance F=±1% G= ±2% J=± 5% | Rated Power: One digits: 1= 1W 2= 1/2W 3= 3/4W 4= 1/4W 8= 1/8W L= 1/10W M=1/16W N=1/20W O=1/32W Two digits: XS=2WS YS=3WS... | Packaging T:tape&reel B:bulk | Terminal: empty value: general type F:Vertical form M:Horizontal form |
| - |
| |
Electrical Characteristics:
| Power Rating | Dimensioins(mm) | Resistance Range(Ω) | Max. Working Voltage | Max. Overload Voltage | Dielectric Withstanding Voltage |
| D | L | H | d±0.05 |
| 1/6W 1/8W | 1.8±0.2 | 3.2±0.5 | 28±2 | 0.4 | 1-10MΩ | 300V | 300V | 300V |
| 1-10MΩ | 500V | 500V | 300V |
| 1/4W | 2.3±0.5 | 6.5±0.5 | 28±2 | 0.45 | 1-10MΩ | 500V | 500V | 500V |
| 1/2WS | 2.3±0.5 | 6.5±0.5 | 28±2 | 0.45 | 1-10MΩ | 700V | 700V | 500V |
| 1/2W | 3.2±0.5 | 9.0±0.5 | 26±2 | 0.5 | 1-10MΩ | 700V | 700V | 700V |
| 1WS | 3.2±0.5 | 9.0±0.5 | 26±2 | 0.5 | 1-10MΩ | 800V | 800V | 700V |
| 1W | 4.5±1.0 | 11.5±1.0 | 35±3 | 0.7 | 1-10MΩ | 800V | 800V | 900V |
| 2WS | 4.5±1.0 | 11.5±1.0 | 35±3 | 0.7 | 1-10MΩ | 800V | 800V | 900V |
| 2W | 5.0±1.0 | 15.5±1.0 | 33±3 | 0.7 | 1-10MΩ | 800V | 800V | 1000V |
| 3WS | 5.0±1.0 | 15.5±1.0 | 33±3 | 0.7 | 1-10MΩ | 500V | 1000V | 1000V |
Taped Packing Dimension(mm):
| Power | Dimension(mm) |
| L±1 | D±0.5 | d±0.05 | P±1 | W1±1 | W2±1 |
| 1/8W(1/4WS) | 3.50 | 1.70 | 0.40 | 5.00 | 52.00 | 64.00 |
| 1/4W(1/2WS) | 6.00 | 2.30 | 0.40 | 5.00 | 52.00 | 64.00 |
| 1/2W(1WS) | 9.00 | 3.20 | 0.48 | 5.00 | 52.00 | 64.00 |
| 1W(2WS) | 11.00 | 4.50 | 0.68 | 5.00 | 63.00 | 75.00 |
| 2W(3WS) | 15.00 | 5.00 | 0.68 | 5.00 | 68.00 | 80.00 |
| 3W(5WS) | 17.00 | 6.00 | 0.68 | 10.00 | 71.00 | 83.00 |
Construction:
| No. | Components |
| A | Ceramic core |
| B | Metal Film |
| C | Caps |
| D | Epoxy resin painting |
| E | Color code |
| F | Soldered or tinned annealed wire. |
Packing: Bulk, Tape
Color Code
